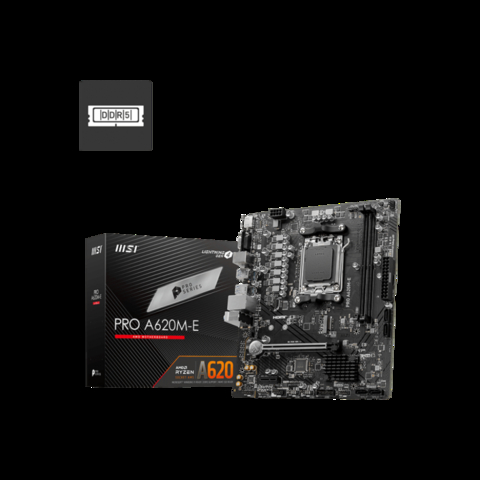

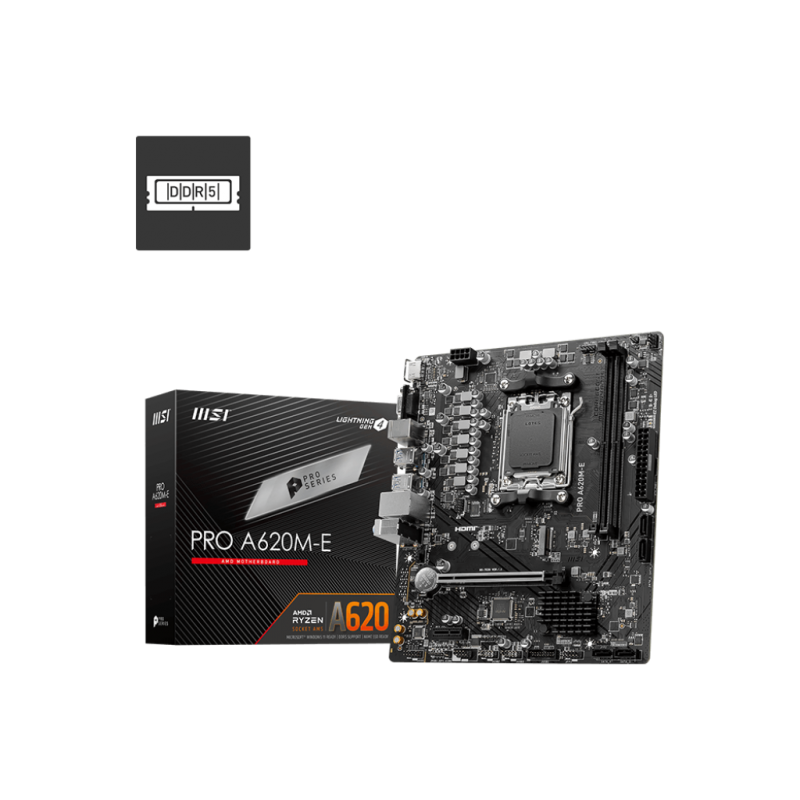

PLACA MADRE MSI PRO A620M-E SOC AM5 DDR5

Admite procesadores AMD Ryzen™ 7000 / 8000 Series Desktop

Admite Memoria DDR5, Dual Channel DDR5 6800+MHz (OC)

Core Boost : Con un diseño premium y un diseño de potencia digital para soportar más núcleos y proporcionar un mejor rendimiento.

Memoria Boost: Tecnología avanzada para ofrecer señales de datos puras para el mejor rendimiento, estabilidad y compatibilidad.

Experiencia de juego a la velocidad del rayo: Ranura PCIe 4.0, Lightning Gen 4 x4 M.2

AUDIO BOOST: Recompensa a tus oídos con una calidad de sonido de estudio para disfrutar de la experiencia de juego más envolvente.

Steel Armor:protege las tarjetas VGA contra las interferencias electromagnéticas para mejorar el rendimiento, la estabilidad y la resistencia.

CHIPSET: AMD A620

CPU: Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors

Socket: AM5

MEMORY

2x DDR5, Maximum Memory Capacity 128GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6800+ MHz

• 1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO

ONBOARD GRAPHICS

1x HDMI™

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

1x D-Sub

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

1x PCI-E x16 slot (Qty)

• Supports x16 (For Ryzen™ 7000 Series processors)

• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)

• Supports x4 (For Ryzen™ 5 8500G processor)

1x PCI-E x1 slot (Qty)

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE

1x M.2 (Qty)

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G (Qty)

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

LAN

Realtek® RTL8111H Gigabit LAN

AUDIO

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

INTERNAL IO

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

HDMI™

VGA

Keyboard/Mouse

USB 3.2 Gen 1 5Gbps (Type-A)

LAN port

Audio connectors

USB 2.0

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB INFO

mATX

211mmx243.84mm
