Motherboard Asus Prime B460m-a 1200 B460 Hdmi Mexx 3

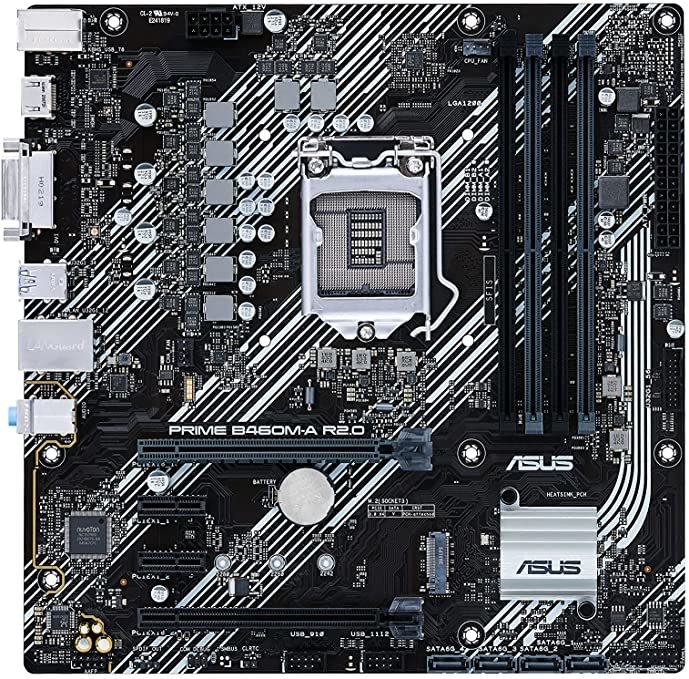

ASUS PRIME B460M-A
Intel® B460 (LGA 1200) mATX motherboard with Aura Sync RGB header, Dual M.2, DDR4 2933MHz, HDMI, DisplayPort, USB 3.2 Gen 1 ports, Intel® Optane memory ready, SATA 6 Gbps
Marca: ASUS
Modelo: PRIME B460M-A
Socket: Intel® Socket 1200
Chipset: Intel® B460
Soporte de Procesadores:
- Intel® 10ma generación: Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
Memoria:
- Procesadores Intel® Core™ i9/i7:
Soporte para módulos de memoria DDR4 2933/2800/2666/2400/2133 MHz
- Procesadores Intel® Core™ i5/i3/Pentium®/Celeron®:
Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
- 4 x DDR4 DIMM, Max. 128GB (32 GB single DIMM capacity)
- Arquitectura de memoria Dual Channel
- Soporte para módulos de memoria Non-ECC, Un-buffered Memory
- Soporte para módulos de memoria Extreme Memory Profile (XMP)
- ASUS OptiMem
Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® UHD Graphics)
- 1 x DisplayPort 1.4
- 1 x HDMI 1.4b
- 1 x DVI-D
DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz
Puertos de expansión:
Procesadores Intel® de 10ma generación:
- 1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel® B460 Chipset:
- 2 x PCIe 3.0/2.0 x1
Almacenamiento:
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset:
- 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
- 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
- 6 x SATA 6Gb/s port(s)
- Soporte para SATA RAID 0, RAID 1, RAID 5 y RAID 10
- Soporte para Intel® Rapid Storage Technology
- Intel® Optane™ Memory Ready
LAN:
- Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
Audio:
- Realtek® ALC887 7.1-Channel High Definition Audio CODEC
- Soporta: Jack-detection, up to 24-Bit/192kHz playback
Audio Feature:
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
USB:
Puertos USB Traseros (6 en total):
- 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
- 2 x USB 2.0 port(s)(2 x Type-A)
Puertos USB Frontales (Soporte para 6 en total):
- 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
- 4 x USB 2.0 port(s)
Características de Software:
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
AI Charger
ASUS CPU-Z
DAEMON Tools
Norton Anti-virus software(Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Características Especiales de ASUS:
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS Safeslot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
ASUS Sync
- Standard RGB header(s)
Soporte Sistema Operativo:
- Windows 10 64-bit
Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
Tamaño:
Micro ATX Form Factor
24.4 cm x 23.4 cm
BIOS:
128 Mb Flash ROM, UEFI AMI BIOS
Accesorios:
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
Garantía: 36 Meses
